Our LFT Pultrusion Lines
Discover our LFT pultrusion lines in 3 sizes for customer-specific applications:
8 strands, for universal use, designed for high temperature processing and a line speed up to 50 m/min
Based on glass fibers with 2400 Tex the following throughput is reachable, if the raw material allows it:
| Fiber Content | Line Speed | Throughput |
|---|---|---|
| 30% | 50 m/min | 175 kg/h |
| 50% | 50 m/min | 105 kg/h |
36 strands, batch operation mode, with focus on either polyolefins or (alternatively) polyamides, designed for a line speed up to 50 m/min. Based on glass fibers with 2400 Tex the following throughput is reachable, if the raw material allows it:
| Fiber Content | Line Speed | Throughput |
|---|---|---|
| 30% | 50 m/min | 800 kg/h |
| 50% | 50 m/min | 500 kg/h |
72 strands, high throughput, rarely change products, with focus on either polyolefins or (alternatively) polyamides, designed for a line speed up to 50 m/min. Based on glass fibers with 2400 Tex the following throughput is reachable, if the raw material allows it:
| Fiber Content | Line Speed | Throughput |
|---|---|---|
| 30% | 50 m/min | 1.600 kg/h |
| 50% | 50 m/min | 1.000 kg/h |
These are basic types. Finally, each system is individually tailored to your requirements.
Beside the impregnation die, the line control system is the heart of our LFT pultrusion lines. Equipped with a central operating panel this Process Control Unit controls the complete LFT pultrusion line and communicates with components having their own control system (e.g. extruder).

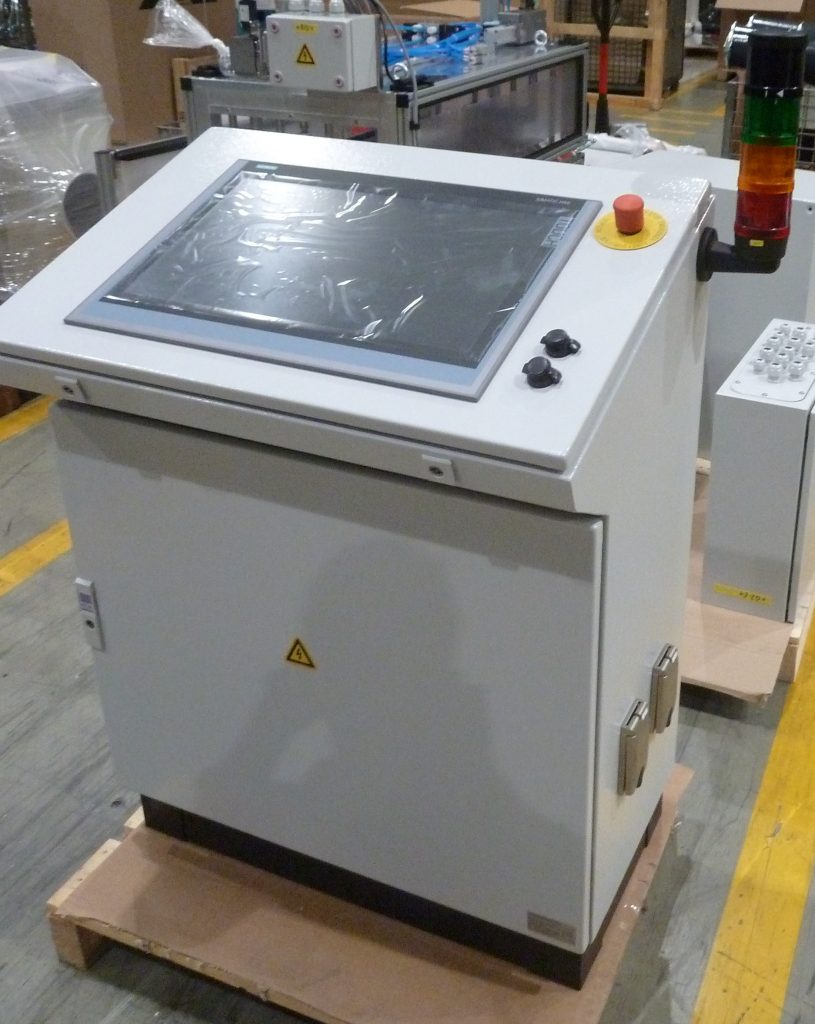

The user interface on 22″ touch panel has proven itself with many customers. It can be installed in a housing whichever you prefer.
All important process parameters are displayed to the operating team. Warnings and alarms show the operating team the need for action.

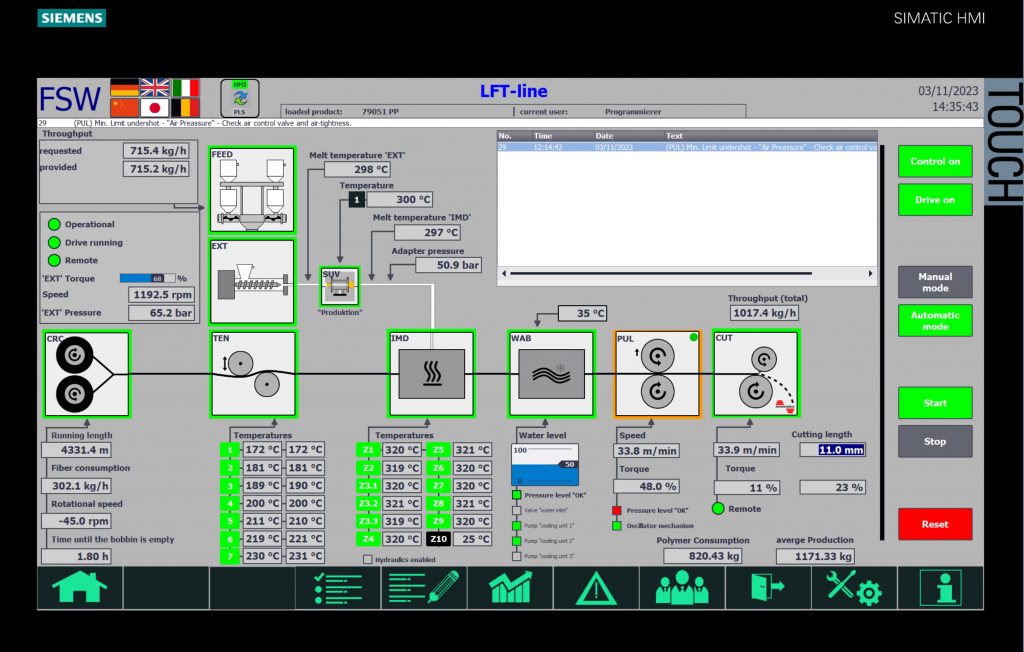

Starting page, showing all relevant parts of the LFT pultrusion line.
Trends can be recorded from selected process parameters.
Texts in local language, if requested
The corresponding PLC software (Siemens) and HMI software (Siemens) is written by us and, if necessary, adapted to your individual requirements.
We add communication interfaces for production (e.g. scanner) and for production planning (OPC-UA) on your request.
Our control is equipped with remote access, so that online support can be provided at any time.
